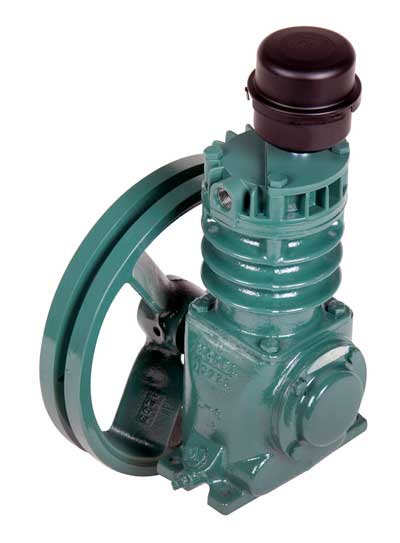

1/2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

1/2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

1/2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)


Basic Air Compressor Pump Features:

(1) Cast Iron Crankcase & Cylinders

 (2) Large Diameter Fan Flywheel and Finned Cylinders for high Efficiency

 (3) High Flow Reed Valves provide Low Lift for Longer Life

 (4) Bronze Type Main Bearing

 (5) Automotive style Inlet Filter that is easy to Service

 (6) Check Oil Level easily


1 year warranty when the single stage air compressor pump is used as a replacement.

If you are seeking an option with a slightly larger horsepower, take a look at our 3/4-1 HP single stage air compressor pump today.


Specifications
HP RANGE 1/2
MAX PSIG 125
CFM RANGE 1.8
STAGES 1
C.F.DISP PER REV .00508108108
RPM RANGE 525
BORE L.P IN 2-3/8
BORE H.P IN NA
STROKE IN 2
CYLINDERS 1
LUBRICATION SPLASH
OIL CAPACIITY OZ 6
DISCHARGE OPENING 1/2 FNPT
FLYWHEEL DIA IN 12.63 1 VA
BOLTDOWN WIDTH IN 5.50
BOLTDOWN DEPTH IN 2.13
HEIGHT IN 17.43
DEPTH IN 8.18
WIDTH IN 12.63
WEIGHT LB 41
