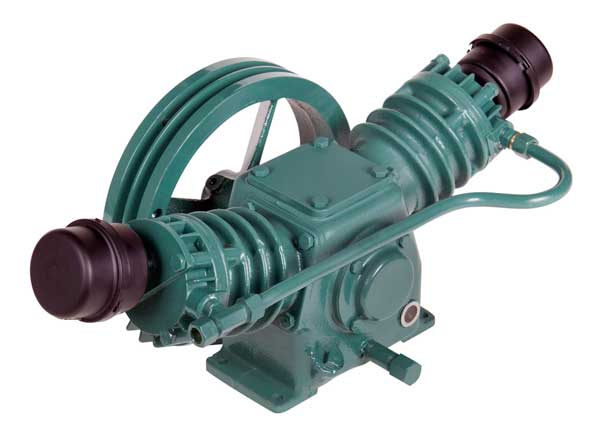

1.5--2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

1.5--2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

1.5--2 HP Champion Single Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)
Cast Iron Cylinders and Crankcase

The Champion compressor pump features a large diameter fan flywheel and finned cylinders, offering maximum efficiency.

High Flow Reed Valves- provide  Low Lift Long Life

The Single Stage Compressor Pump features a Tapered Roller-Type Main Bearing

Automotive Type Inlet Filter designed for easy servicing

Oil Sight Glass makes it easy to Check Oil Level

If you're looking for an option that features a slightly lower power, take a look at the 1 HP air compressor pump.

 One (1) year warranty when used as a replacement.

Specifications
HP RANGE 1.5---2
MAX PSIG 125
CFM RANGE 5.3---6
STAGES 1
C.F.DISP PER REV .01016216216
RPM RANGE 728---924
BORE L.P IN 2-3/8"
BORE H.P IN NA
STROKE IN 2
CYLINDERS 2
LUBRICATION SPLASH
OIL CAPACIITY OZ 16
DISCHARGE OPENING 1/2" FNPT
FLYWHEEL DIA IN 10.13 2 VA
BOLTDOWN WIDTH IN 7
BOLTDOWN DEPTH IN 2.75
HEIGHT IN 10.13
DEPTH IN 10.25
WIDTH IN 23.43
WEIGHT LB 45
