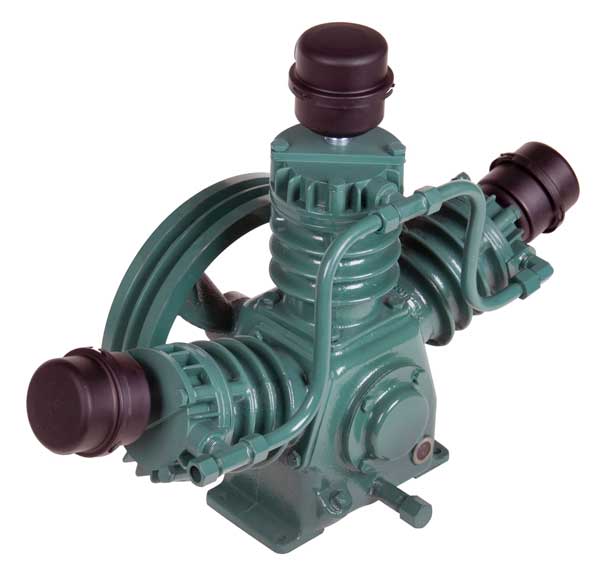

2-3 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

2-3 HP Champion Single Stage Splash Lubricated Basic Compressor Pump

2-3 HP Champion Single Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)
Champion Industrial Air Compressor Pump Features:

Crankcase & Cylinders made from Cast Iron

Larger Fan Flywheel with Finned Cylinders for Great Efficiency

High Flow Reed Valves offering Low Lift Long Life

Tapered Roller-Type Main Bearing for the Longest Life

Easy-to-service Automotive Type Inlet Filter

This Champion compressor pump features an oil sight glass to check oil levels easily.

 When used as a replacement - 1 year warranty

Specifications
HP RANGE 2---3
MAX PSIG 125
CFM RANGE 7.2---10.2
STAGES 1
C.F.DISP PER REV .01524324324
RPM RANGE 700---995
BORE L.P IN 2-3/8
BORE H.P IN NA
STROKE IN 2
CYLINDERS 3
LUBRICATION SPLASH
OIL CAPACIITY QT 16
DISCHARGE OPENING 1/2" FNPT
FLYWHEEL DIA IN 12.63 2 VA
BOLTDOWN WIDTH IN 7
BOLTDOWN DEPTH IN 2.75
HEIGHT IN 18.27
DEPTH IN 10.21
WIDTH IN 23.41
WEIGHT LB 55
