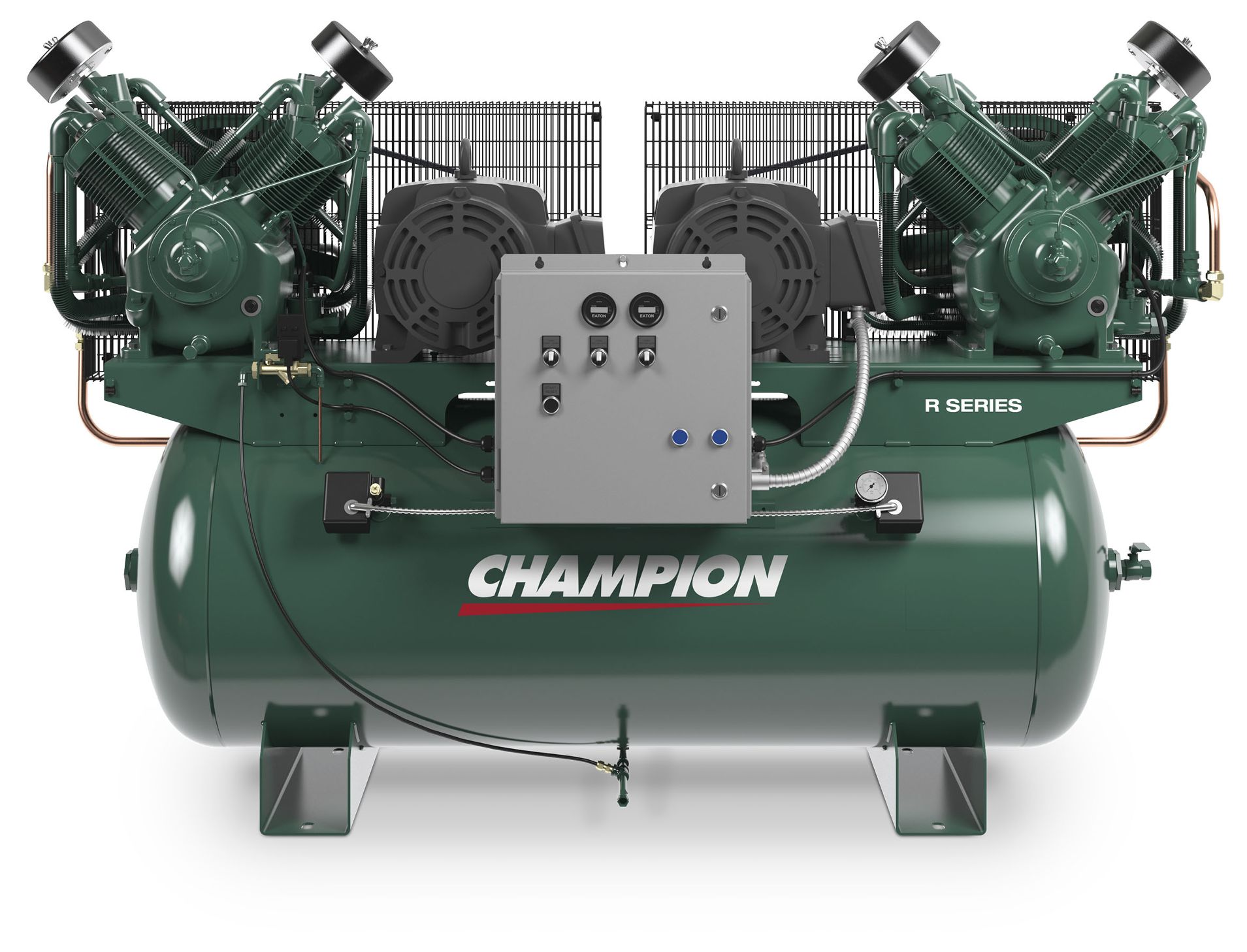

10 HP 250 Gallon Duplex Advantage Champion Air Compressors Fully Packaged

10 HP 250 Gallon Duplex Advantage Champion Air Compressors Fully Packaged

FREE SHIPPING
10 HP 250 Gallon Duplex Advantage Champion Air Compressors Fully Packaged
Click to enlarge image(s)

FIVE YEAR WARRANTY offered on the PUMP

This 10 HP air compressor comes with these pre-installed popular options that save you time and money:

  • Control panel with starter, transformer and fuse already mounted and wired to save on installation costs.
  • The Champion HR10D-25 features a low oil shutdown control mounted and wired to stop the unit when oil level is low.
  • Electronic timed tank drain comes mounted and wired. This option automatically drains condensate out of the tank and helps reduce rust in tank.
  • Aftercooler comes mounted and piped, helping remove up to 70% of the moisture.
  • The 250 gallon air compressor features vibration isolator pads to protect the tank from stress and reduce noise levels.
  • ChampLub Compressor Oil comes in crankcase. This is the proper oil for your compressor’s break in period.

Specifications
CFM DELIVERED @ 175 PSIG 34.8 X 2 = 69.9
TANK CAP IN GALLONS 250
TANK TYPE HORIZONTAL
PSIG OFF SETTING 175
PSIG ON SETTING 140
STAGES 2
PUMP RPM 740
MOTOR HP 2 X 10 = 20
VOLTAGE NA
AMPERES NA
HERTZ 60
PHASE 3
LENGTH IN 88
WIDTH IN 29
HEIGHT IN 62
WEIGHT LB 1725
