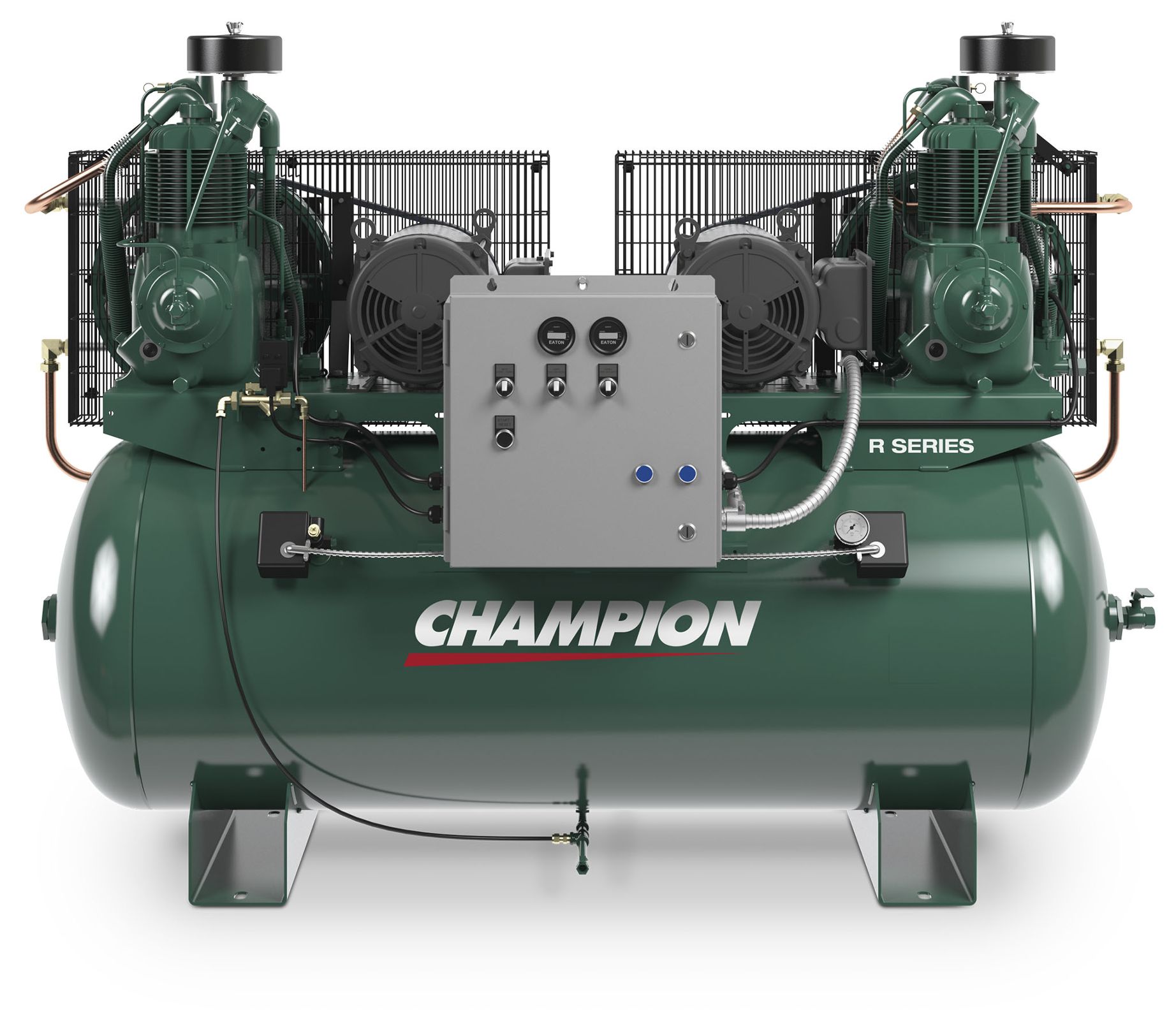

5 HP 120 Gallon Horizontal Duplex Champion Air Compressors Fully Packaged

5 HP 120 Gallon Horizontal Duplex Champion Air Compressors Fully Packaged

FREE SHIPPING
5 HP 120 Gallon Horizontal Duplex Champion Air Compressors Fully Packaged
Click to enlarge image(s)
Alternator & starters mounted & wired -----Saves on electrical wiring cost

Low oil monitors mounted & wired-----Stops motor when oil level is low

Auto tank drain mounted & piped -----removes water from tank automatically

Isolators pads -----protects the dual air compressor from out-of-level floors & reduces noise

Factory oil filled with ChampLub to help provide a longer compressor pump life

This dual stage air compressor features mounted and piped air-cooled aftercoolers to remove 70% of moisture.

If you are looking for an option with a slightly higher horsepower, check out the 7.5HP 120 gallon air compressor.

FIVE YEAR WARRANTY ON PUMP
Specifications
CFM DELIVERED @ 175 PSIG 16.5 X 2 = 33
TANK CAP IN GALLONS 120
TANK TYPE HORIZONTAL
PSIG OFF SETTING 175
PSIG ON SETTING 140
STAGES 2
PUMP RPM 710
MOTOR HP 2 X 5=10
VOLTAGE NA
AMPERES NA
HERTZ 60
PHASE NA
LENGHT IN 67
WIDTH IN 28
HEIGHT IN 52
WEIGHT LB 955
