R-15B Champion 3--5--7.5 HP Two Stage Splash Lubricated Basic Compressor Pump

R-15B Champion 3--5--7.5 HP Two Stage Splash Lubricated Basic Compressor Pump

R-15B Champion 3--5--7.5 HP Two Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)

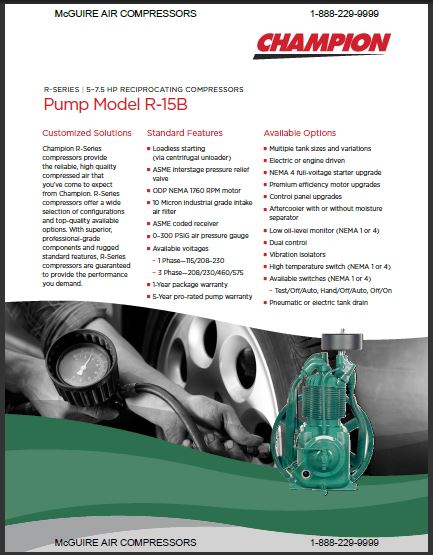

Download a FREE Brochure on the
Champion Pump Model R-15B




Integral Cylinder / Head------No Head Gasket to Blow

Large Diameter Intercooler Finned Tubes offers Maximum Efficiency

High Flow Disc & Spring Valves helps provide Long Life

Tapered Roller-Type Main Bearing offers Longest Life

Automotive Type Inlet Filter makes this two-stage air compressor pump easier to service

Oil Sight Glass provided Easy way to Check Oil Level

Pressure Relief Valves----Intercooler & Discharge

This 2 cylinder air compressor pump features a centrifugal unloader for load-less starts.

1 year warranty when used as a replacement.

Specifications
HP RANGE 3---5---7.5
MAX PSIG 175
CFM RANGE 9.7---23.4
STAGES 2
C.F.DISP PER REV .02916
RPM RANGE 440---990
BORE L.P IN 4-5/8
BORE H.P IN 2-1/2
STROKE IN 3
CYLINDERS 2
LUBRICATION SPLASH
OIL CAPAICITY QT 2
DISCHARGE OPENING 3/4" TUBING
FLYWHEEL DIA IN 16.5
BOLTDOWN WIDTH IN 8-3/4
BOLTDOWN DEPTH IN 5-3/4
HEIGHT IN 24
DEPTH IN 20
WIDTH IN 17
WEIGHT LB 125
