R-30D Champion 7.5--10--15 HP Two Stage Splash Lubricated Basic Compressor Pump

R-30D Champion 7.5--10--15 HP Two Stage Splash Lubricated Basic Compressor Pump

R-30D Champion 7.5--10--15 HP Two Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)

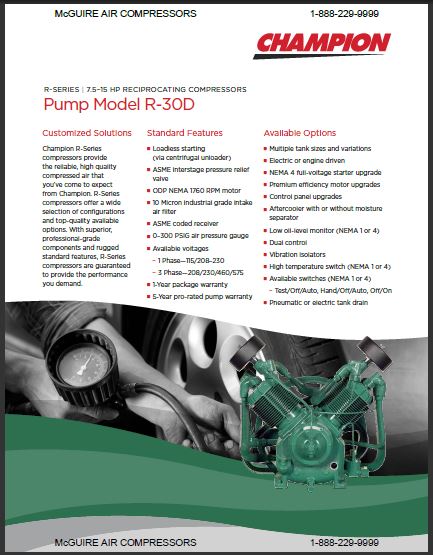

Download a FREE Brochure on the
Champion R-30D Pump




Integral Cylinder / Head------No Head Gasket to Blow


This basic compressor pump features intercooler finned tubes with a large diameter for maximum efficiency.

High Flow Disc & Spring Valves-----Low Lift Long Life

The Champion air compressor pump features a tapered roller-type main bearing for a longer life.

Automotive Type Inlet Filter-----Easy to Service

This dual stage air compressor pump features an oil sight glass, making it easy to check the oil level.

Pressure Relief Valves----Intercooler & Discharge

Centrifugal Unloader----Load-less Starts

1 year warranty when used as a replacement pump

Specifications
HP RANGE 7.5---10---15
MAX PSIG 175
CFM RANGE 25.8---50.2
STAGES 2
C.F.DISP PER REV .05828
RPM RANGE 575---1045
BORE L.P IN 4-5/8
BORE H.P IN 2-1/2
STROKE IN 3
CYLINDERS 4
LUBRICATION SPLASH
OIL CAPAICITY QT 4
DISCHARGE OPENING 3/4" NPT
FLYWHEEL DIA IN 18-7/8
BOLTDOWN WIDTH IN 4-13/16
BOLTDOWN DEPTH IN 8-1/16
HEIGHT IN 24
DEPTH IN 23
WIDTH IN 26
WEIGHT LB 220
