R-40A Champion 15 HP Two Stage Splash Lubricated Basic Compressor Pump

R-40A Champion 15 HP Two Stage Splash Lubricated Basic Compressor Pump

R-40A Champion 15 HP Two Stage Splash Lubricated Basic Compressor Pump
Click to enlarge image(s)

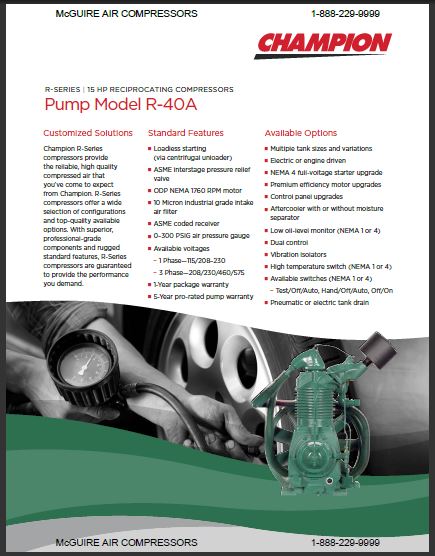

Download a FREE Brochure on the
Champion R-40A Pump




Integral Cylinder / Head------No Head Gasket to Blow


Large Diameter Intercooler Finned Tubes for greater efficiency

High Flow Disc & Spring Valves assists with longer equipment Life

Tapered Roller-Type Main Bearing

Automotive Type Inlet Filter makes servicing the two-stage air compressor pump easier

Oil Sight Glass provides an Easier way to Check Oil Level

Pressure Relief Valves----Intercooler & Discharge

Designed with a centrifugal unloader allows the Champion air compressor pump to have load-less starts.

1 year warranty when used as a replacement compressor pump


Specifications
HP RANGE 15
MAX PSIG 175
CFM RANGE 53.7---59.0
STAGES 2
C.F.DISP PER REV .0800
RPM RANGE 770---890
BORE L.P IN 6-1/4
BORE H.P IN 3-1/4
STROKE IN 4-1/2
CYLINDERS 2
LUBRICATION SPLASH
OIL CAPAICITY QT 4
DISCHARGE OPENING 1" TUBING
FLYWHEEL DIA IN 22
BOLTDOWN WIDTH IN 5-11/16
BOLTDOWN DEPTH IN 10
HEIGHT IN 32
DEPTH IN 28
WIDTH IN 30
WEIGHT LB 440
