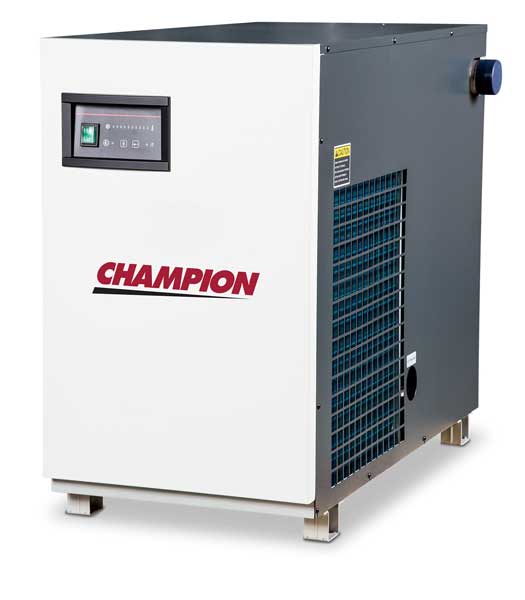

CHAMPION 400 CFM NON CYCLING REFRIGERATED AIR DRYER

CHAMPION 400 CFM NON CYCLING REFRIGERATED AIR DRYER

FREE SHIPPING
CHAMPION 400 CFM NON CYCLING REFRIGERATED AIR DRYER
Click to enlarge image(s)
This Champion air dryer is built to meet the IOS 8573.1 class 4 / 5 standard----MIN P.D.P.37F -Max P.D.P. 45F

The 400-CFM refrigerated cycling air dryer is epoxy powder painted to protect from corrosion

User friendly serviceability provides a lower maintenance cost

AISI 304 Stainless steel heat exchanger----- Energy efficiency

Check out the Champion refrigerated air dryer for 450 CFM air compressor for a unit with a slightly higher horsepower.

2 Year Warranty on all parts & labor
3 Year Additional Warranty on all parts & labor with purchuse of FIL SERIES PACKAGE & annunal maintance kits.
Specifications
RATED CFM CAPACITY 400
PRESSURE DEW POINT 38 F
CONTROLLER LEVEL 2
MAXIMUIM PSIG 250
PSIG PRESSURE DROP 3
REFRIGERANT TYPE 134A
DRAIN TYPE TIMED
IN / OUT CONNECTIONS 2" NPT
H.P. 3
NEMA RATING 1
VOLTAGE 230
HERTZ 60
PHASE 1
HEIGHT IN 31.94
WIDTH IN 19.39
DEPTH IN 43.75
WEIGHT LB 270
